Infrastructure

Load Balancers

  • Load balancers distribute incoming requests to resources such as application servers and databases.

  • Helps distribute the traffic across a cluster of servers to improve responsiveness and availability of applications.

  • Deploying a load balancer is typically more useful when you have multiple servers.

More Details:

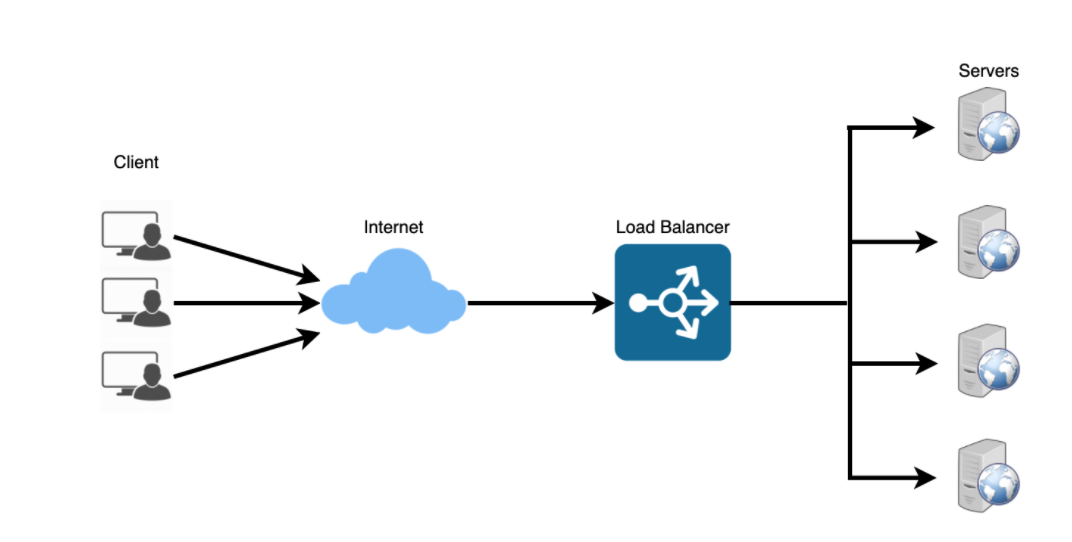

  • Typically a load balancer sits between the client and the server accepting incoming network and application traffic and distributing the traffic across multiple backend servers using various algorithms.

  • By balancing application requests across multiple servers, a load balancer reduces individual server load and prevents any one application server from becoming a single point of failure, thus improving overall application availability and responsiveness.

  • Load balancers should only forward traffic to “healthy” backend servers. To monitor the health of a backend server, “health checks” regularly attempt to connect to backend servers to ensure that servers are listening.

  • The load balancer can be a single point of failure; to overcome this, a second load balancer can be connected to the first to form a cluster.

Advantages

  • Prevents requests from going to unhealthy servers

  • Prevents overloading resources

  • Helping to eliminate a single point of failure

  • Load balancing helps you scale horizontally across an ever-increasing number of servers.

Disadvantages

  • Load balancer can become a performance bottleneck if it does not have enough resources.

  • A single load balancer is a single point of failure.


Route Traffic

  • Layer 4 load balancers look at info at the transport layer to decide how to distribute requests.

  • Generally, this involves the source, destination IP addresses, and ports in the header, but not the contents of the packet.

  • Layer 4load balancers forward network packets to and from the upstream server, performing Network Address Translation (NAT).

  • Layer 7 load balancers look at the application layer to decide how to distribute requests. This can involve contents of the header, message, and cookies.

  • Layer 7 load balancers terminate network traffic, reads the message, makes a load-balancing decision, then opens a connection to the selected server.

Disadvantages

  • The load balancer can become a performance bottleneck if it does not have enough resources or if it is not configured properly.

  • Introducing a load balancer to help eliminate a single point of failure results in increased complexity.

  • A single load balancer is a single point of failure, configuring multiple load balancers further increases complexity.

Application Gateway

  • Is a web traffic load balancer that enables you to manage traffic to your web applications.

  • Traditional load balancers operate at the transport layer (OSI layer 4 - TCP and UDP) and route traffic based on source IP address and port, to a destination IP address and port.

  • Application Gateways can make routing decisions based on additional attributes of an HTTP request, for example URI path or host headers.

  • Example: you can route traffic based on the incoming URL. So if /images is in the incoming URL, you can route traffic to a specific set of servers (known as a pool) configured for images.

Microservices

  • Can be described as a suite of independently deployable, small, modular services.

  • Each service runs a unique process and communicates through a well-defined, lightweight mechanism to serve a business goal.

Airflow

  • Airflow is a platform to programmatically author, schedule and monitor workflows

  • Airflow creates workflows as Directed Acyclic Graphs (DAGs) of tasks.

  • DAG is defined in a Python script, which represents the DAGs structure (tasks and their dependencies) as code.

  • Interface makes it easy to visualize pipelines running in production, monitor progress, and troubleshoot issues.

  • Airflow pipelines are configured as code (Python), allowing for dynamic pipeline generation. This allows for writing code that instantiates pipelines dynamically. Scalable: Airflow has a modular architecture and uses a message queue to orchestrate an arbitrary number of workers. Airflow is ready to scale to infinity.

Example

db_operator = DatabricksSubmitRunOperator(task_id=name, json={cluster configs})
t1 = db_operator(‘name’,’train.py’,[‘--arg’,’arg_name’]
t2 = db_operator(‘name’,’deploy.py’,[‘--arg’,’arg_name’]
t1 >> [t2]

Create docker image w/ airflow dags

Docker-compose for deploying web server
Create web server using airflow latest image
Add sqlite database and configuration
Add volumes
Setup ports
Run command for health checks

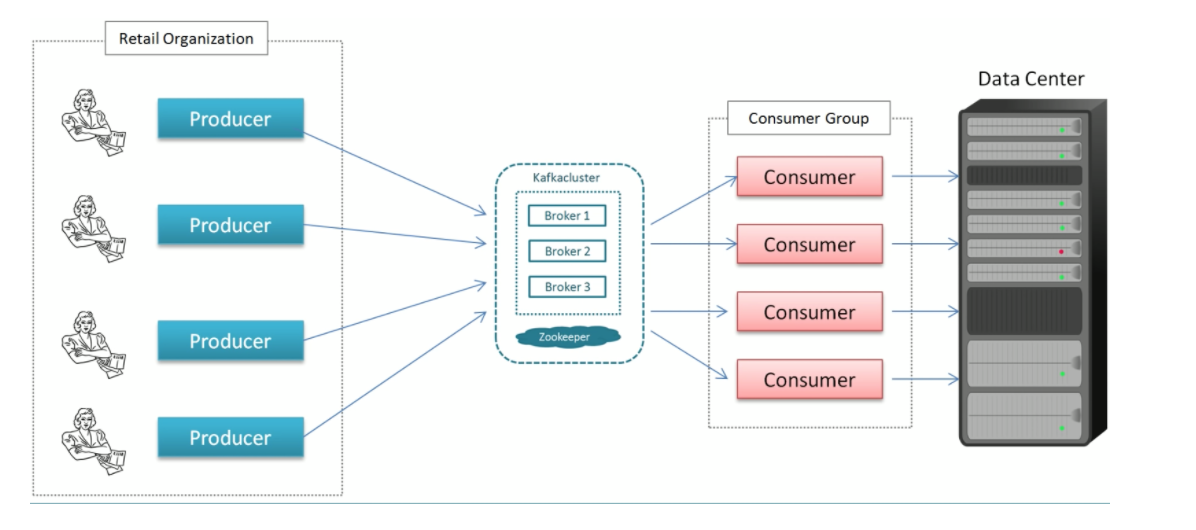

Kafka

  • Producer: sends message record

  • Consumer: an application that receives data from Kafka

  • Broker: Kafka Server (message broker) between producer and consumer

  • Cluster: A group of servers sharing workload for a common purpose that each executes one instance of a broker.

  • Topic: is a unique name for a Kafka stream.

  • Partition: breaks a topic into subsets of data that’s distributed across cluster. The end-user makes a decision on which predicate to partition on.

  • Offset: a sequence id given to a message as they arrive in a partition.The sequence id is stored in order based on arrival.

    • Offsets are local to the partition.

  • Global Identifier: Topic Name -> Partition Number -> Offset

  • Consumer Group: group of consumers acting as a single unit to divide the work.

    • The maximum consumers in a group is equal to the number of partitions on the topic.

    • Kafka does not allow more than 2 consumers to read from a partition simultaneously; this avoids double reading of records.

  • Scaling: occurs horizontally and does not have to manually scale.
